Geographical variations

The utilization rates recorded by geographical area are based exclusively on the insured's administrative domicile and not on the place of intervention. The geographical areas of breakdown are regions, provinces and boroughs.

Since the data are standardized for gender, age and social status, geographical differences are then linked to a particular epidemiology of the pathology underlying the intervention, to a difference in access to care or to potential variations in practices.

Representations of geographical variations:


These variations can be illustrated in various ways. One way of assessing them is to plot the rates per arrondissement of a particular practice on a dot-plot graph. This is useful as it highlights clusters of data, gaps in the distribution, and outlier values. In the case of carotid ultrasounds, for example, (see figure below), the ratio of maximum: minimum values is approximately 4:1.

Variations DotPlot


Another, probably the most intuitive, way of showing unwarranted variations is to use mapping. A colour code is used to show how much the rate in each arrondissement differs from the national mean. This makes it quick to see where the variations are greatest and least pronounced, and indicates whether the arrondissements furthest from the mean are geographically close to each other.

  variations géo carte

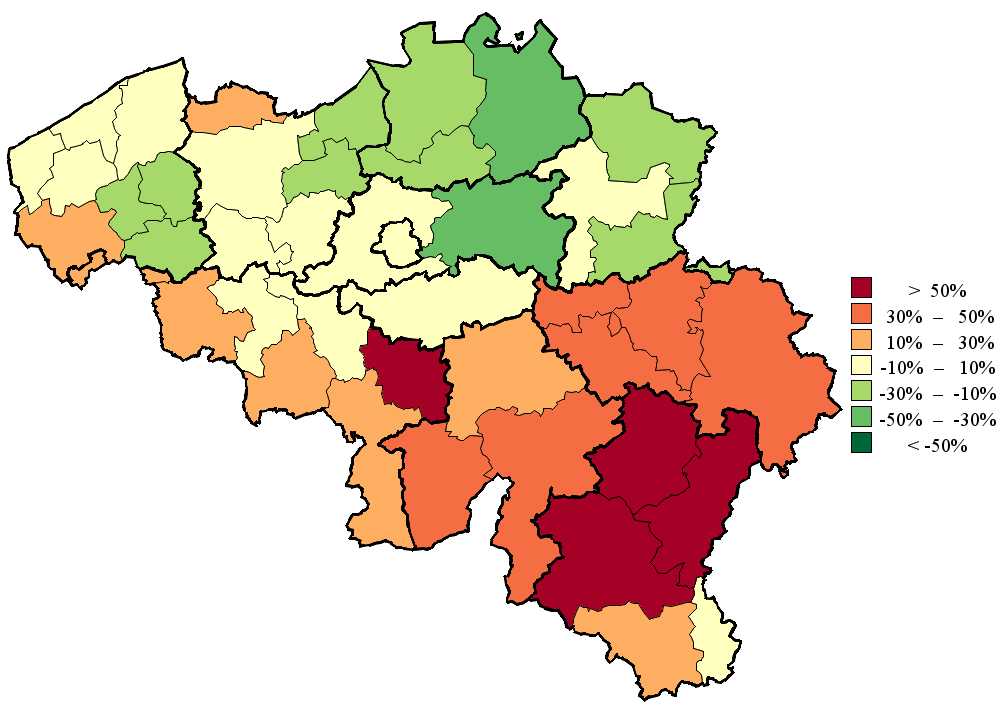

In the case of thyroidectomies, for example (see figure above), we can see a clear North-South divide in how rates vary, in each arrondissement, from the mean thyroidectomy rate.


Another way of presenting the data on geographical variations is to use a funnel plot. The rates per arrondissement are positioned according to the size of the population. The confidence intervals typically take the shape of a funnel: for arrondissements with small populations, the expected variation is greater than for those with large populations. The arrondissements falling outside the upper and lower limits of the 99.7% confidence intervals can then be defined as ‘outliers’.

In the example of maxillofacial surgery (see figure below), we can see that one arrondissement, with a large population, very much stands out, with a significantly higher rate than in other arrondissements: it is well above the upper confidence level.

Variations FunnelPlot


One key indicator of the extent of geographical variations is the coefficient of variation between arrondissements.The coefficient of variation measures the position of data vis-a-vis the mean (standard deviation: mean). A high coefficient of variation indicates that practices vary between arrondissements. It is still difficult, however, to set a threshold value beyond which the coefficient of variation is considered too high.

variations géo CV

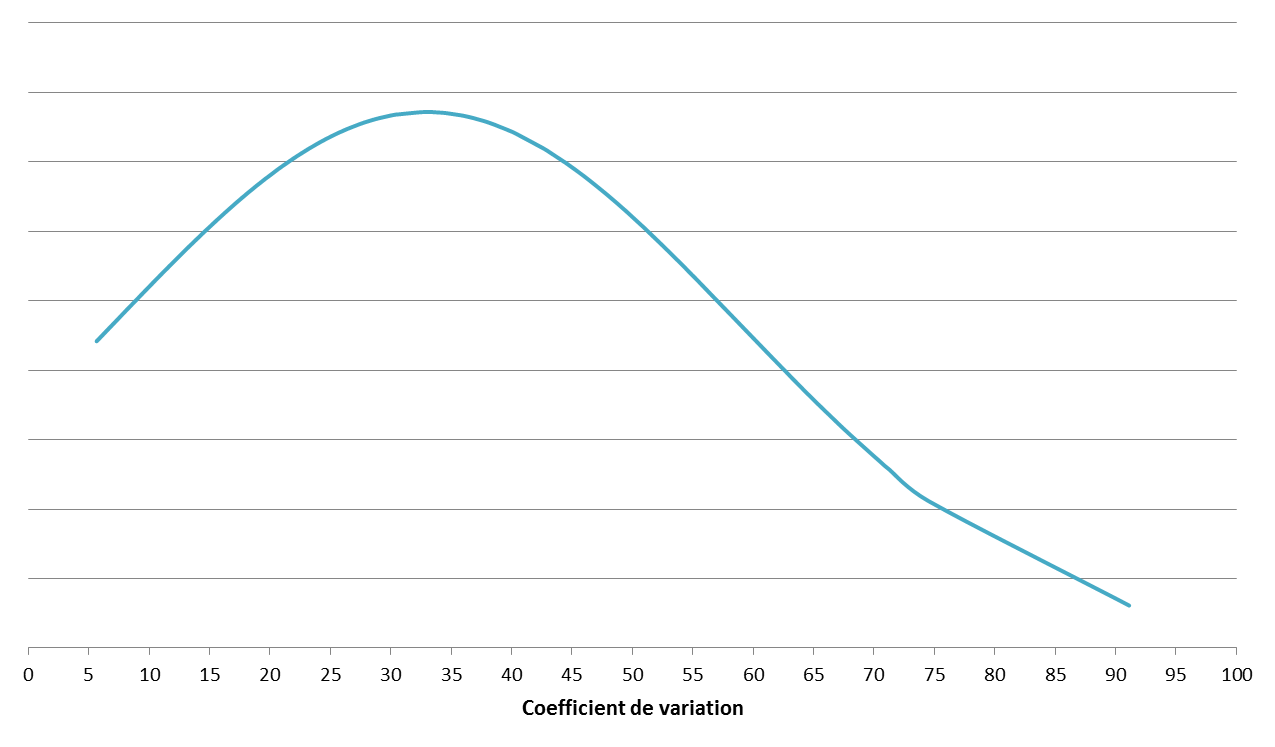

If, to illustrate this, we plot the distribution of coefficients of variation for around a hundred varied and distinct medical practices in Belgium (see figure above), we can see that this distribution follows a Gaussian curve around a mean coefficient of variation of about 33. Even without a threshold value, we can deduce from this curve that, generally-speaking, there are high levels of geographical variation, and that there is, therefore, real evidence of unwarranted geographical variations in Belgium.
